Topcon Laser Level Rlh5a With LS100D

Topcon Laser Level Rlh5a With LS100D Specification

Product Type
SELF LEVELLING LASER LEVEL

Usage
FLOORING CONSTRUCTION LEVELLING AGRICULTURE

Application
SURVEYING CONSTRUCTION FLOORING

Color
YELLOW BLACK

Classification
ROTATING LASER

Mount Thread
5/8

User Interface
Simple one-touch operation

Self-Leveling Range
5

Housing Material
High-impact composite body

Power Supply
4 x D-cell (alkaline) batteries

Slope Function
Single axis manual slope

Laser Diode
635 nm, visible red

Drop Resistance
Withstands drops from 1m on all sides

Battery Type
Alkaline / rechargeable Ni-MH (optional)

Operating Temperature
-20C to +50C

Detector
LS-100D Included

Operating Time
Up to 60 hours (alkaline batteries)

Laser Class
Class 2

Model Number
RL-H5A

Working Range
up to 800 meters (diameter) with LS100D

Remote Control
Optional

Horizontal Accuracy
1.5mm at 30m

Water and Dust Resistance
IP66

Accuracy
10 arc seconds

Rotation Speed
600 rpm

Applications
General construction, grading, foundations, concrete, excavation

Topcon Laser Level Rlh5a With LS100D Trade Information

Minimum Order Quantity
1 Number

Delivery Time
7 Days

Topcon Laser Level Rlh5a With LS100D About

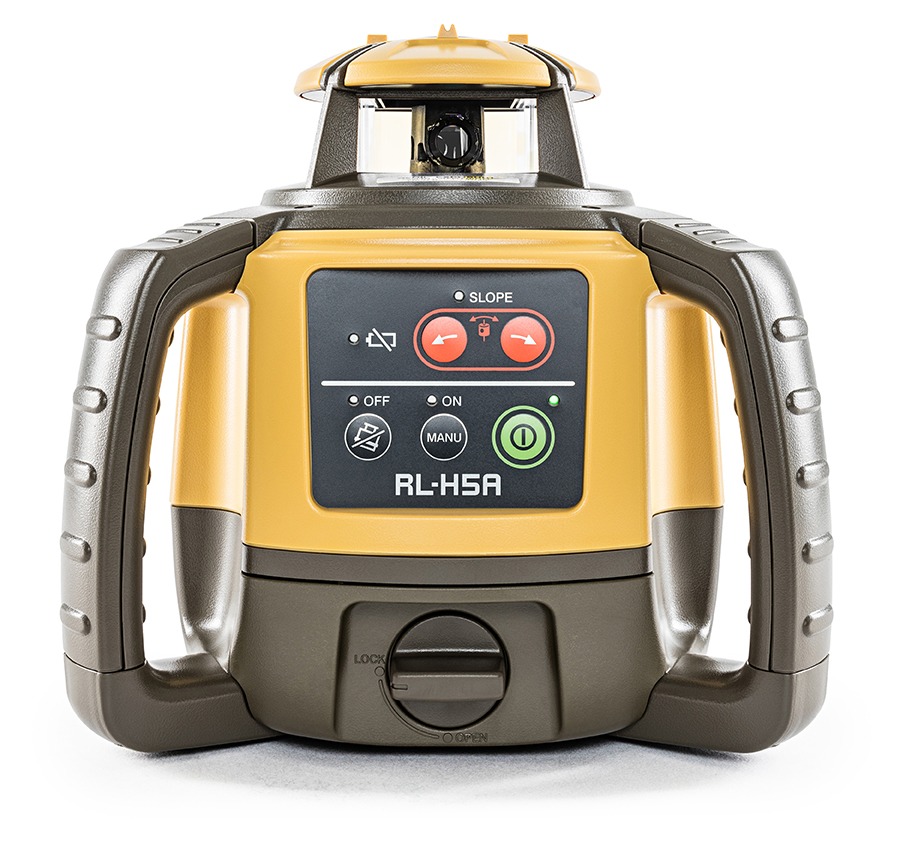

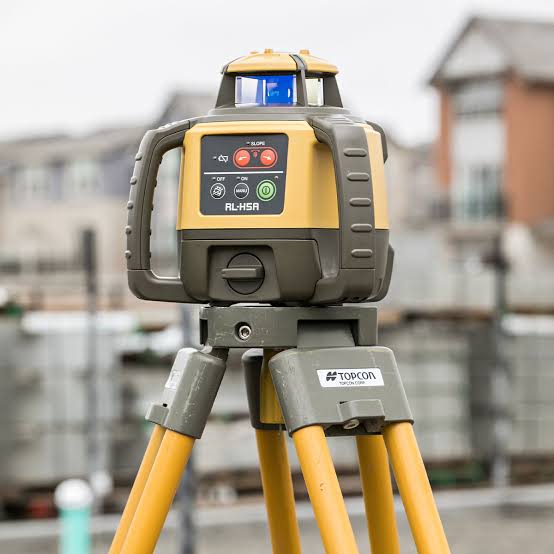

Topcon RL-H5A Self Leveling Rotary Laser Level with LS-100D Digital Receiver for Construction & Surveying

Topcon RL-H5A Rotary Laser Level with LS-100D Digital Receiver is a professional self-leveling rotary laser level widely used for construction leveling, road construction, excavation, foundation work, grading, landscaping, and civil engineering projects. This Topcon laser level offers 1.5 mm accuracy at 30 m and a long 800 m working diameter with the LS-100D digital receiver, making it ideal for large outdoor job sites.

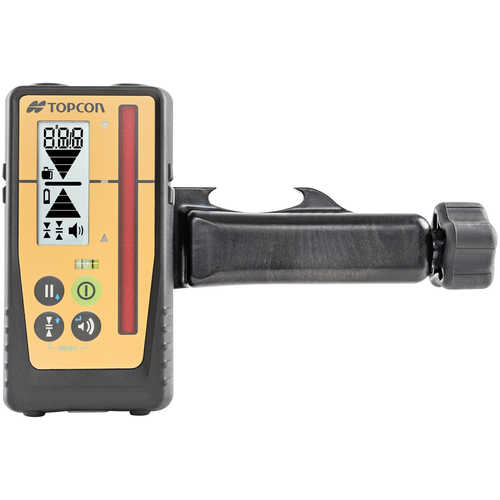

The RL-H5A features automatic electronic self-leveling, manual single-axis slope adjustment, 600 RPM rotation speed, and a highly visible 635 nm red laser beam. Its rugged IP66 waterproof and dustproof design ensures reliable performance in harsh construction environments. The included LS-100D digital laser receiver provides digital elevation readout, audible grade indication, and a wide detection window for fast and accurate measurements.

Ideal for: Building Construction, Road & Highway Projects, Earthwork, Foundation Layout, Concrete Pouring, Site Development, Agricultural Land Leveling, and Industrial Installations.

Topcon RL-H5A, Topcon Rotary Laser Level, Self Leveling Laser Level, Construction Laser Level, Road Construction Laser, Foundation Laser Level, Excavation Laser Level, Grading Laser Level, Outdoor Rotary Laser, Survey Laser Level, Topcon LS-100D Receiver.

Superior Accuracy and Range

Achieve unparalleled leveling accuracy with the Topcon RL-H5A's 1.5mm accuracy at 30 meters and an extensive working range up to 800 meters in diameter using the LS100D detector. This capability ensures efficiency and reliability for large-scale projects, from excavation to concrete work.

Built for Tough Environments

Engineered with a high-impact composite body and rating of IP66, the RL-H5A easily withstands harsh jobsite conditions, including water and dust. It also endures drops from 1 meter on all sides, providing peace of mind during demanding construction activities.

Simple Operation and Flexible Power Options

The RL-H5A features a user-friendly one-touch interface for quick setup and operation. Flexible power options include 4 D-cell alkaline batteries or rechargeable Ni-MH batteries (optional), delivering up to 60 hours of continuous operation for uninterrupted workflow.

FAQ's of TOPCON LASER LEVEL RLH5A WITH LS100D:

Q: How do I set up and operate the Topcon RL-H5A with the LS100D detector?

A: Setting up the RL-H5A is straightforward thanks to its simple one-touch operation. Just mount the laser using the standard 5/8" x 11 thread, power it on, and the self-leveling feature will quickly calibrate the device. The LS100D detector helps you easily find the laser beam over long distances.

Q: What applications is the Topcon RL-H5A best suited for?

A: This laser level is perfect for general construction, grading, foundation work, excavation, flooring, and agricultural leveling tasks due to its single-axis slope function, long-range capability, and rugged durability.

Q: When should I use the manual slope function on the RL-H5A?

A: The manual slope function is ideal when you need to establish a specific incline or slope on a single axis, such as when grading or setting up inclined surfaces for drainage or landscaping.

Q: Where can I use this laser level considering environmental conditions?

A: The RL-H5A can be used both indoors and outdoors, even in challenging environments. With an IP66 rating, it is highly resistant to water and dust and operates reliably in temperatures from -20C to +50C.

Q: What benefits do the LS100D detector and high visibility red laser provide?

A: The LS100D detector maximizes working range up to 800 meters (diameter) and improves accuracy, while the 635nm visible red laser offers excellent beam visibility under various lighting conditions, streamlining your measuring process.

Q: How long will the RL-H5A operate on one set of batteries?

A: With four D-cell alkaline batteries, the RL-H5A can provide up to 60 hours of continuous use, ensuring reliable performance over multiple workdays on a single charge.
